HLG 100 V2 Compact Quantum Board LED for 2x2 and 3x3 Spaces

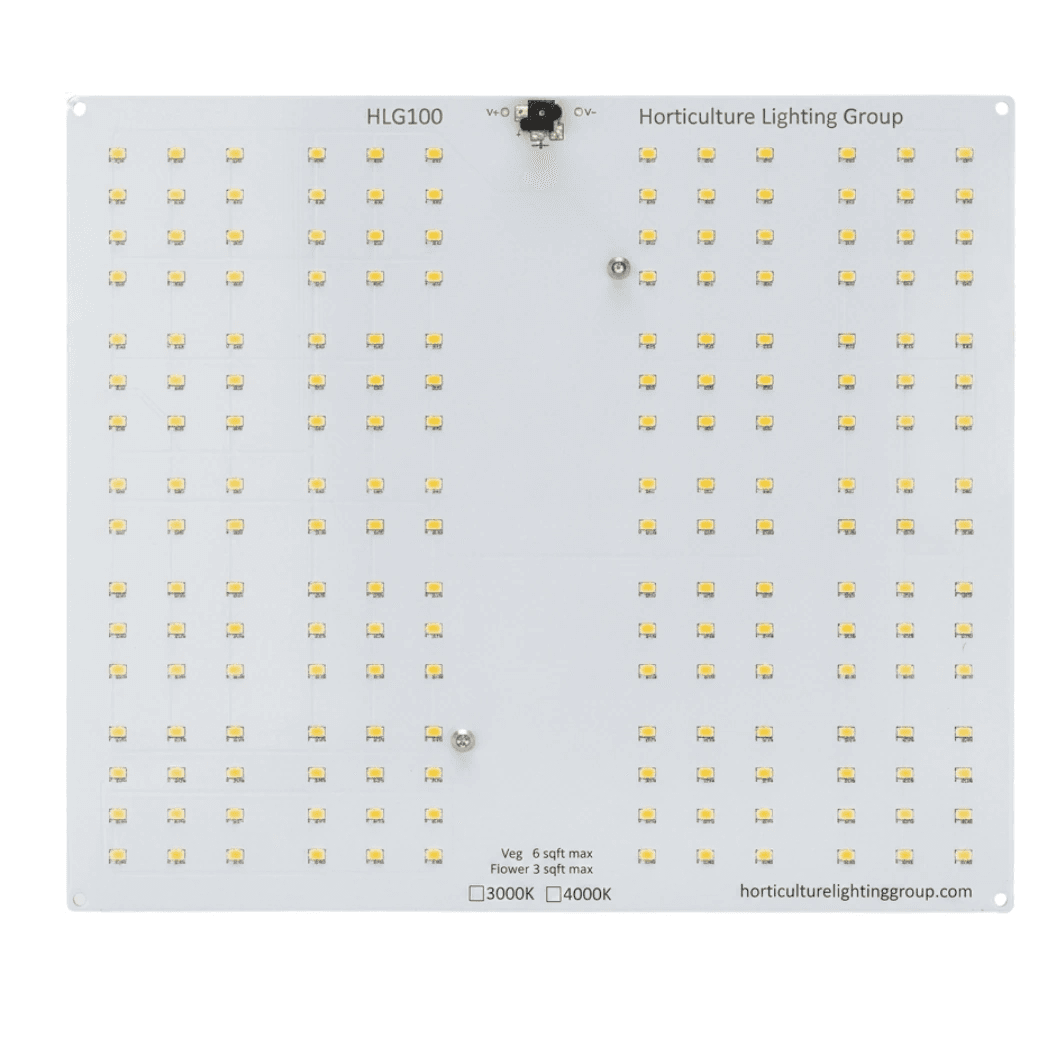

The HLG 100 V2 packs 192 Samsung LM301B LEDs onto a single quantum board to produce 235 PPF at 2.45 µmol/J efficacy from just 95W. That output is equivalent to a 220W T5, 300W CFL, or 200W metal halide — compressed into a passive-cooled fixture measuring 12.8 x 11 in. The included non-dimmable MeanWell power supply accepts 90-264 VAC with a NEMA 1-15P plug, and the fixture is available in 3000K (R-Spec) for veg and flowering or 4000K for vegetative-focused applications.
Samsung LM301B Quantum Board with 15,000+ Lumens at 95W

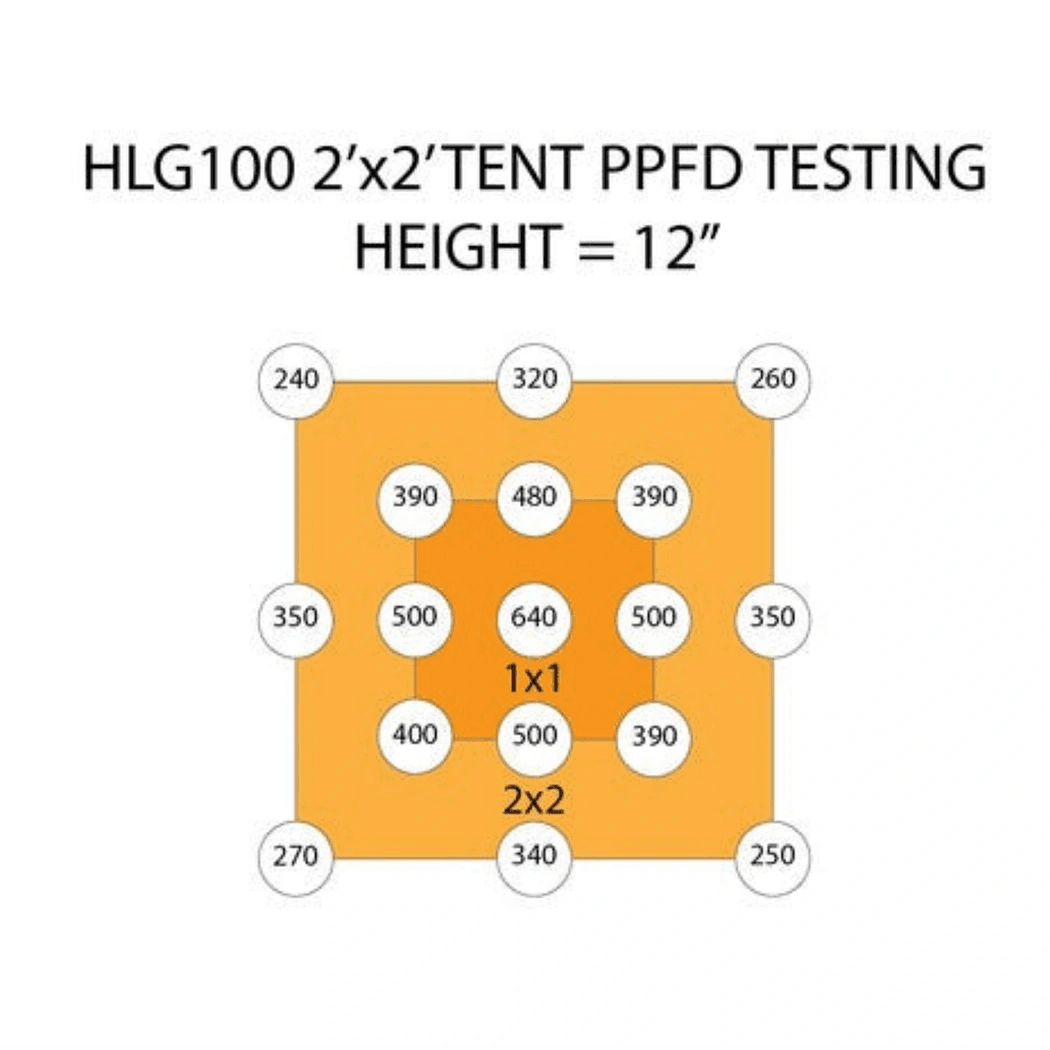

Coverage reaches 2 x 2 ft in flower and 3 x 3 ft in veg, making the HLG 100 V2 a natural fit for small tents, propagation racks, and supplemental side-lighting in larger rooms. The full spectrum white light with diffused output provides better canopy penetration than traditional panel designs. At 170 Lm/W system efficiency, this fixture keeps energy use low for growers running multiple small-footprint setups.
Key Features
- 192 Samsung LM301B LEDs: High-bin diodes deliver consistent output and long service life on a single quantum board
- 235 PPF at 2.45 µmol/J: Strong efficacy from a sub-100W fixture reduces per-watt cost for small grow spaces
- 3000K or 4000K Spectrum Options: Choose R-Spec (3000K) for full-cycle flowering or 4000K for dedicated vegetative and propagation use
- 90-264 VAC Auto-Sensing: MeanWell driver works across international voltages without manual switching
- Compact 12.8 x 11 in Form Factor: Fits easily into 2 x 2 tents, vertical racks, and tight propagation setups
Technical Specifications
| Specification | Value |
|---|---|
| Wattage | 95W |
| Voltage | 90-264 VAC |
| LED | 192 pcs Samsung LM301B |
| PPF | 235 µmol/s |
| Efficacy | 2.45 µmol/J |
| System Efficiency | 170 Lm/W |
| Flower Coverage | 2 x 2 ft |
| Veg Coverage | 3 x 3 ft |
| Spectrum Options | 3000K (R-Spec) / 4000K |
| Dimming | Non-dimmable |
| Thermal Management | Passive |
| Dimensions | 12.8 x 11 in |
| Plug | NEMA 1-15P |
