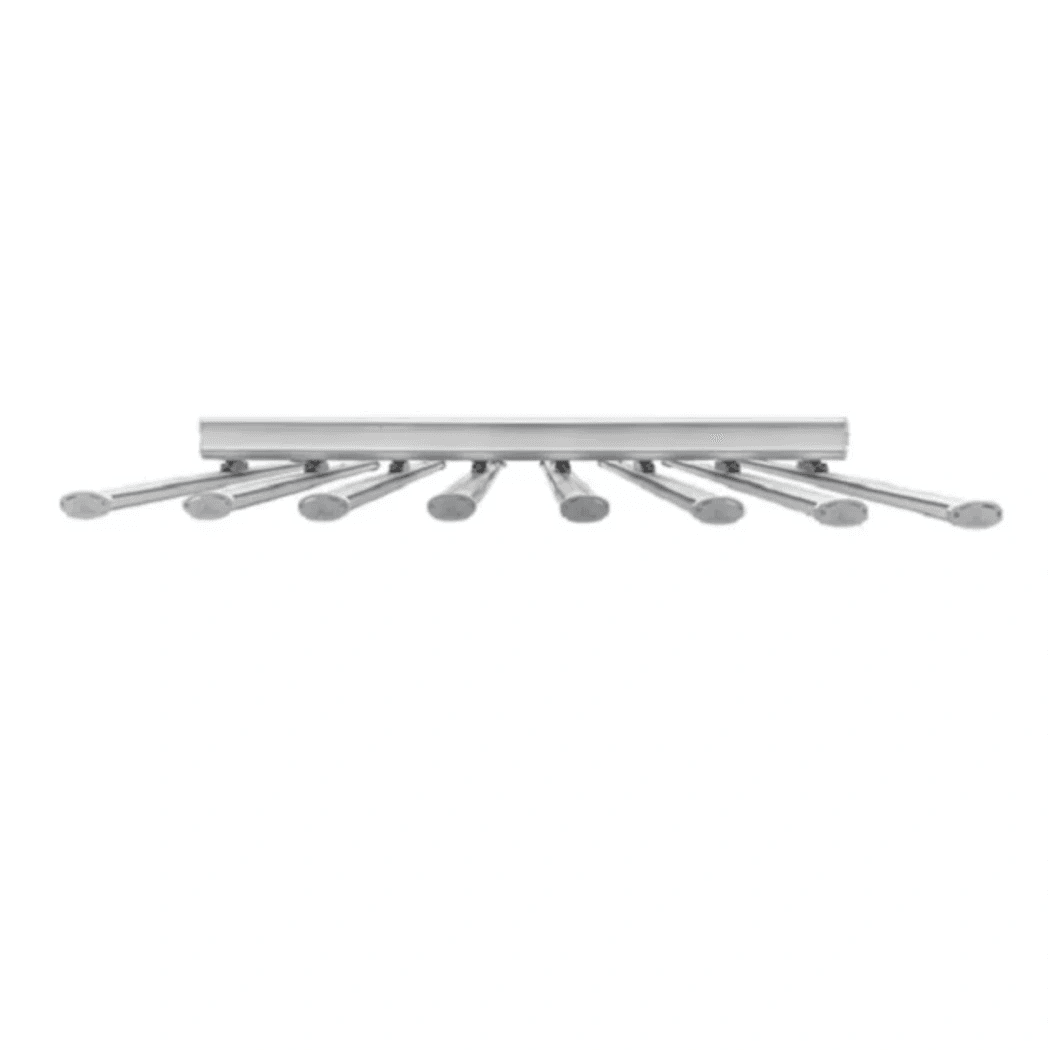

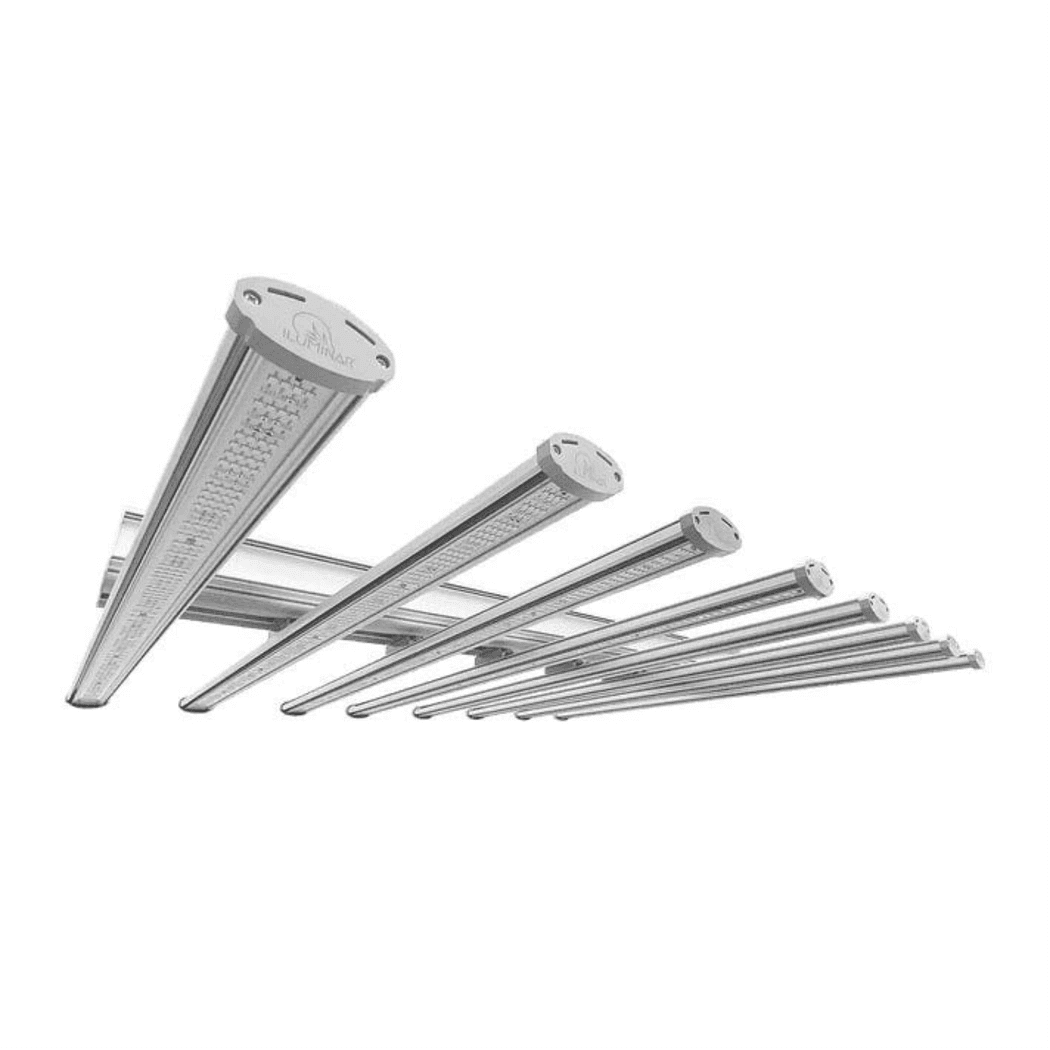

Iluminar iLogic8 630W LED Fixture with UV and Far-Red
The Iluminar iLogic8 UV+Far Red runs 630W to produce 1,800 µmol/s ePAR at 2.85 µmol/J, on Smart Sensing 100–277V input. The added UV and far-red bands fill the spectral gap left by legacy HPS and standard full-spectrum LED, supporting branching density, terpene development, and trichome production.
Terpene-Boosting LED with UV and Far-Red Across a 4x4 ft Footprint
The 124.3mm x 1002mm x 1064mm fixture holds a uniform 4′ x 4′ footprint at 8–12” hang height with a 3,350K base spectrum, hot-swap easy-release light bars, IP66 wet rating, and ETL/FCC/CE listings. The 0–10V dimmable driver and 50,000+ hour LED lifespan suit CO2-enriched flower rooms and multi-tier rack cultivation, backed by a 5-year warranty.
Key Features
- 1,800 µmol/s ePAR at 2.85 µmol/J: Higher photon output than the standard iLogic8 at the same 630W draw.
- UV and Far-Red Spectrum: Fills the spectral gap to drive trichome density, terpene production, and flower-site branching.
- Smart Sensing 100–277V: Drops into 120V, 240V, or 277V circuits without driver reconfiguration.
- Hot-Swap Light Bars: Replace individual bars without removing the full fixture from the canopy.
- IP66 Damp/Wet Rated: Sealed extruded heat sink for humid flower rooms with 5-year warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Power | 630W |
| PPF (ePAR) | 1,800 µmol/s |
| PPE (ePAR) | 2.85 µmol/J |
| Voltage | 100–277V Smart Sensing |
| Color Temperature | 3,350K |
| Spectrum | Full Spectrum + UV + Far-Red |
| Coverage Footprint | 4×4 ft |
| Mounting Height | 8–12” to top of canopy |
| Dimming | 0–10V Controllable |
| Light Distribution | 120° |
| IP Rating | IP66 (Damp/Wet) |
| LED Lifespan | 50,000+ hours |
| Dimensions | 1064mm L x 1002mm W x 124.3mm H (41.9” x 39.4” x 4.9”) |
| Cooling | Passive / Extruded Case |
| Certifications | ETL / FCC / CE |
| Warranty | 5 years |
